³ª³ëºÐ¼â±â
³ª³ëºÐ¼â±âÀÇ Æ¯Â¡
´ç»çÀÇ MMX ³ª³ë ºÐ¼â±â´Â 200MP( 2000Kgf/cm2)ÀÇ ¾Ð·ÂÀ¸·Î ´ÙÀ̾î¸óµå Åø ³»ºÎ¿¡¼­ ´ëÇâ Ãæµ¹½ÃÄÑ, ÀÔÀÚ¸¦ ºÐ¼â, ºÐ»êÇϴ Ư¼ö ÀåºñÀÔ´Ï´Ù.
Á¦¾à, ½ÄÇ°, È­ÇÐ, ¹ÙÀÌ¿À ºÐ¾ß¿¡¼­  Æ¯¼öÇÏ°Ô »ç¿ëµÇ´Â Àåºñ·Î¼­ ±Í»çÀÇ ½ÅÁ¦Ç° °³¹ß ¹× Á¦Ç°Çâ»ó¿¡ ±â¿©ÇÒ ¼ö ÀÖ½À´Ï´Ù.

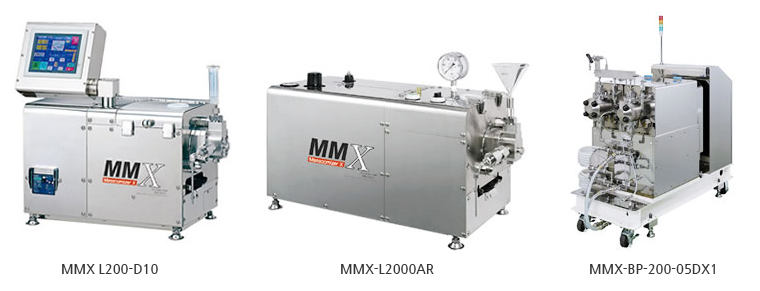

SPECIFICATION (MMX L200-D10, MMX-L2000AR)
¸ðµ¨ MMX L200 -D10, MMX-L2000AR MMX-BP-200-05DX1
Operation Pressure 200 Mps (2000 Kgf/cm2) 200 Mps (2000 Kgf/cm2)
Processing Volume 107 ml/min 107 ml/min
Plunger Diameter 10 mm 10 mm
Plunger Stroke 50 mm 50 mm
Driving Method Servo motor type or Air driven type Servo motor type or Air driven type
Min Saple Volume 6 ml 6 ml
Input Particle size 30 - 10 micron 30 - 10 micron
Dimension 535(w)¡¿349(l)¡¿513(h) mm 535(w)¡¿349(l)¡¿513(h) mm
Weight 38kg 38kg
Cooling water 5 Liter/min  option heat exchanger 5 Liter/min  option heat exchanger

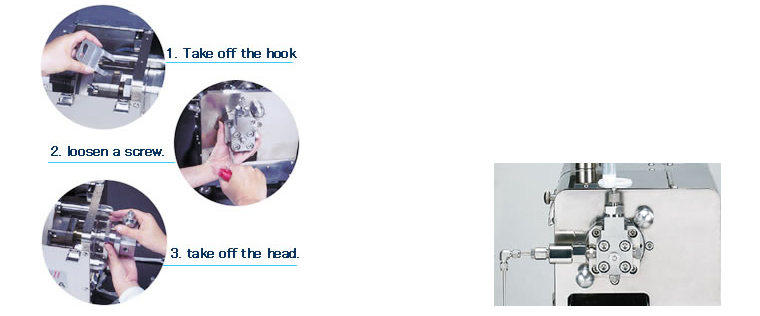

MMX NANO MILL SYSTEMÀº »çÀÌÁî°¡ ÀÛ°í, ÄÄÆÑÆ®ÇÑ ±¸Á¶·Î ±¸¼ºµÇ¾î, ºÐÇØ Á¶¸³ÀÌ °£ÆíÇϹǷÎ, ´©±¸³ª ½±°Ô »ç¿ëÇÒ ¼ö ÀÖ½À´Ï´Ù.


Processing Example
Sample Purpose Disperse
Medium
Processing
Pressure
(MPa)
The processing
number of time
Average particle
size (mm)
Liposome emulsification water 200
100
10
3
4
200
57
98
140
Fat emulsion emulsification water 150 3 64
amino acid ceramide emulsification water 150 10 70
BDD crystals
(Medical supplies)
crushing water 150 200 360
Aloejiru#200 dispersion water 150
50
3
1
85
93
Aloejiro Alumina dispersion water 50 3 99
titania ST-01 dispersion water 200 10 72
titania ST-21 dispersion water 50 5 74
copper phthalocyanine dispersion water 180 50 Less tan 50
wax dispersion water 200 10 65
Measuring equipment of particle size : Beckman LS-13320(0.04-2,000l'm) Average particle size is not an arrival limit.
